Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
2. Drain the cooling system. Refer to STANDARD PROCEDURE  .
3. Remove the right battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

4. Disconnect the coolant level sensor wire harness connector (2).

   Courtesy of CHRYSLER GROUP, LLC

5. Remove the lower coolant hose (1) from coolant recovery bottle.

   Courtesy of CHRYSLER GROUP, LLC

6. Remove the pressurized coolant bottle lower nut (1).

   Courtesy of CHRYSLER GROUP, LLC

7. Remove the A/C line support bracket bolt (1).
8. Unlock and remove the A/C line support bracket (2).

   Courtesy of CHRYSLER GROUP, LLC

9. Remove the two nuts (1) and position the pressurized coolant recovery bottle (2) forward to gain access to hose clamps.

   Courtesy of CHRYSLER GROUP, LLC

10. De-attach the two coolant hose retainers (1 and 3) from the pressurized coolant bottle.
11. Using the hose clamp pliers (special tool #10288, Pliers, Hose Clamp), remove the two coolant hoses (2) and the coolant bottle.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Using the hose clamp pliers (2) (special tool #10288, Pliers, Hose Clamp) install the two coolant hose (2) onto the coolant bottle.
2. Attach the two coolant hose retainers (1 and 3).

   Courtesy of CHRYSLER GROUP, LLC

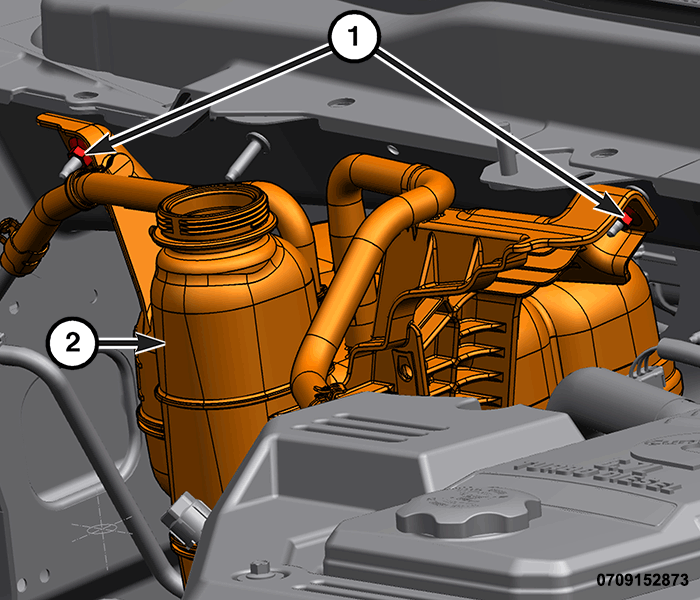

3. Install the pressurized coolant bottle (2) and tighten the two nuts (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

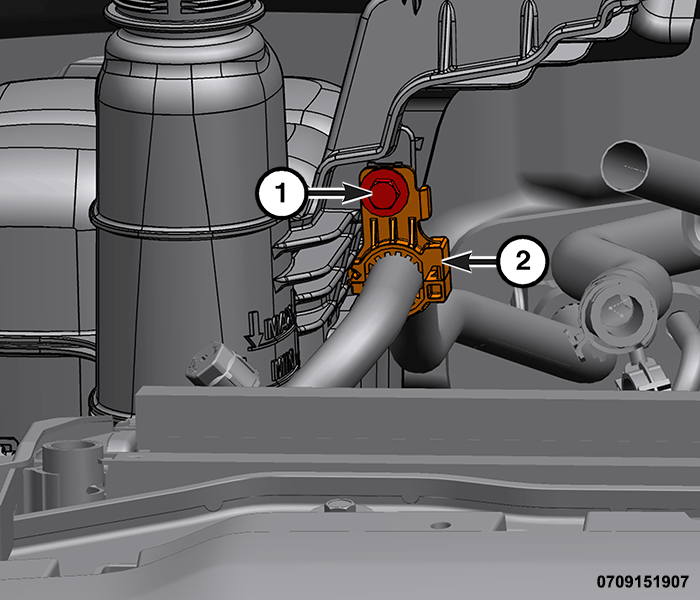

4. Install the A/C line support bracket (2) and engage the lock.
5. Install the A/C line support bracket bolt (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

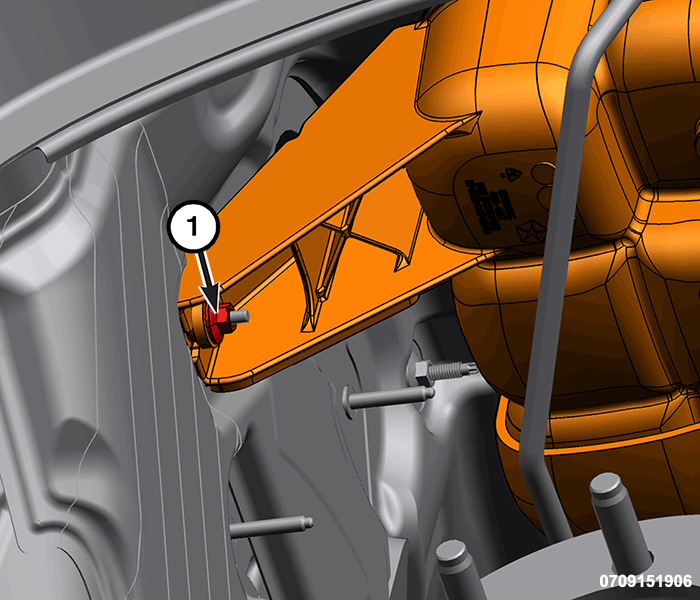

6. Install the pressurized coolant bottle lower nut (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

7. Install the lower coolant hose (1) to the pressurized coolant bottle.

   Courtesy of CHRYSLER GROUP, LLC

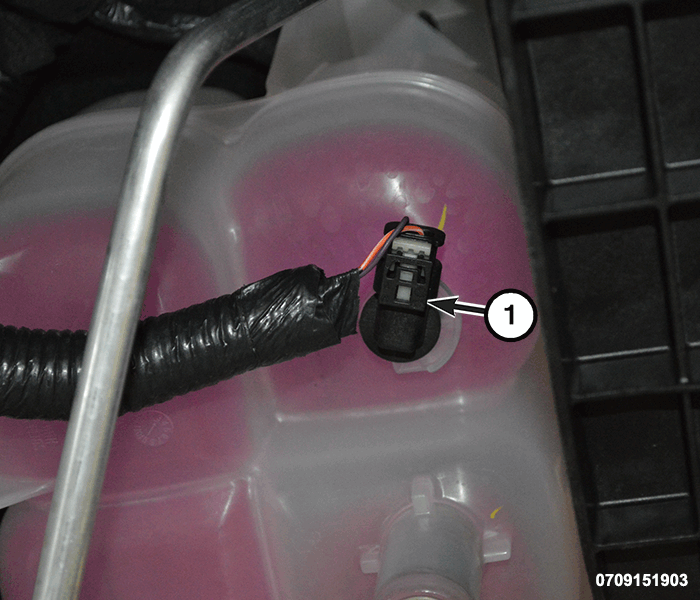

8. Connect the coolant level sensor wire harness connector (1).
9. Install the right battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
10. Fill the cooling system. Refer to STANDARD PROCEDURE  .
11. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
