Instrument Panel End Speaker

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC

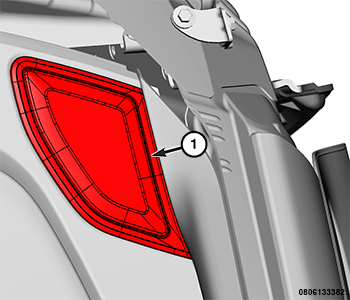

Remove the instrument panel end speaker grille (1).

Courtesy of CHRYSLER GROUP, LLC

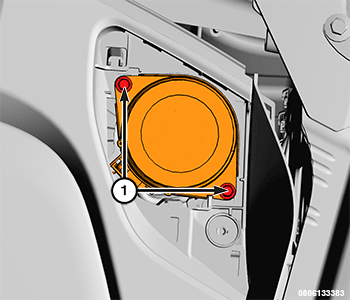

Remove the two screws (1) securing the speaker to the instrument panel.

Courtesy of CHRYSLER GROUP, LLC

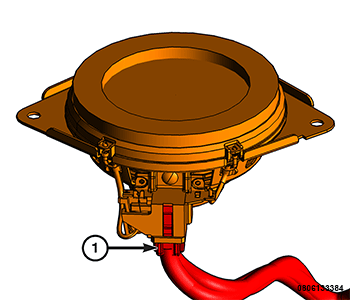

Disconnect the wire harness connector (1) and remove the speaker.

INSTALLATION

Connect the wire harness connector and install the speaker.
Install and tighten the two speaker screws securely.
Install the instrument panel end speaker grille.
Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
