Removal And Installation

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Set the parking brake.

   Courtesy of CHRYSLER GROUP, LLC

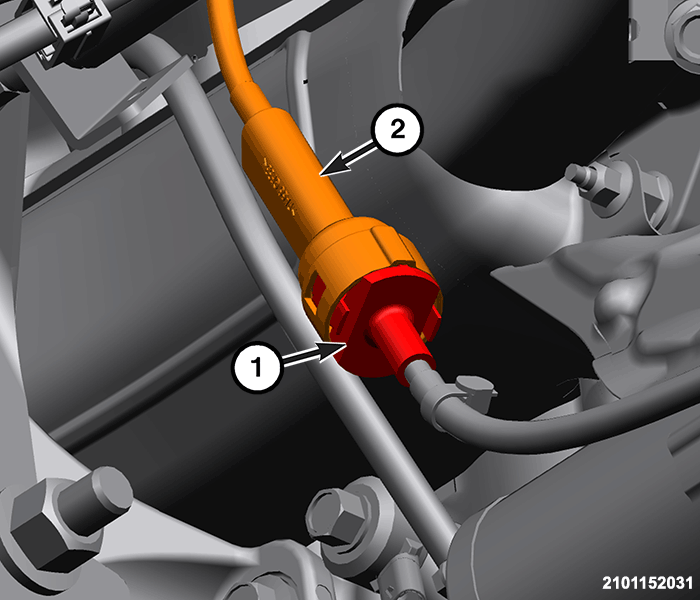

3. Squeeze the two tabs on the lower cable (1) and disconnect from upper cable (2).

   Courtesy of CHRYSLER GROUP, LLC

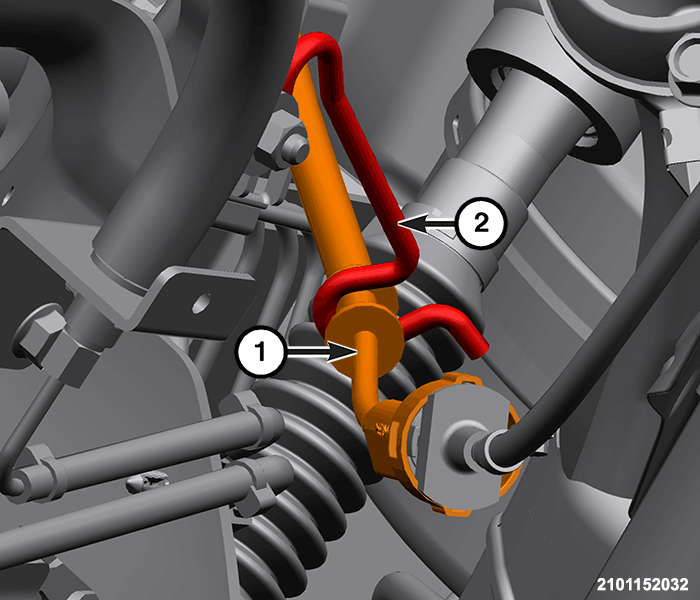

4. Slide cable (1) out of retention bracket (2).

   Courtesy of CHRYSLER GROUP, LLC

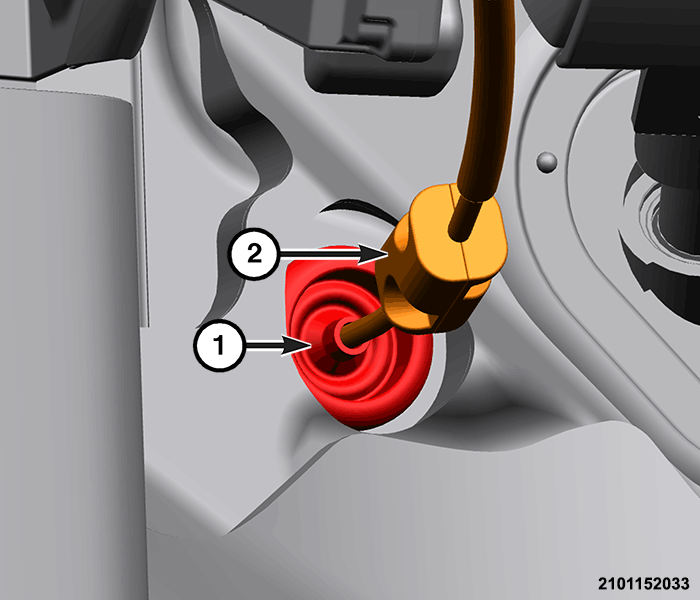

5. Remove the bulkhead grommet (1) towards the interior, pull the cable (2) through the bulkhead.

   Courtesy of CHRYSLER GROUP, LLC

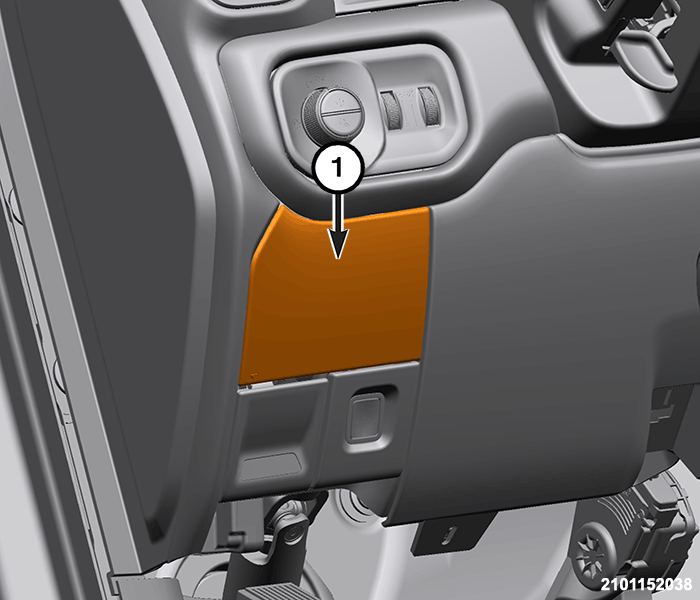

6. Using a trim stick or equivalent, remove the Manual Park Release (MPR) lever cover (1).

   Courtesy of CHRYSLER GROUP, LLC

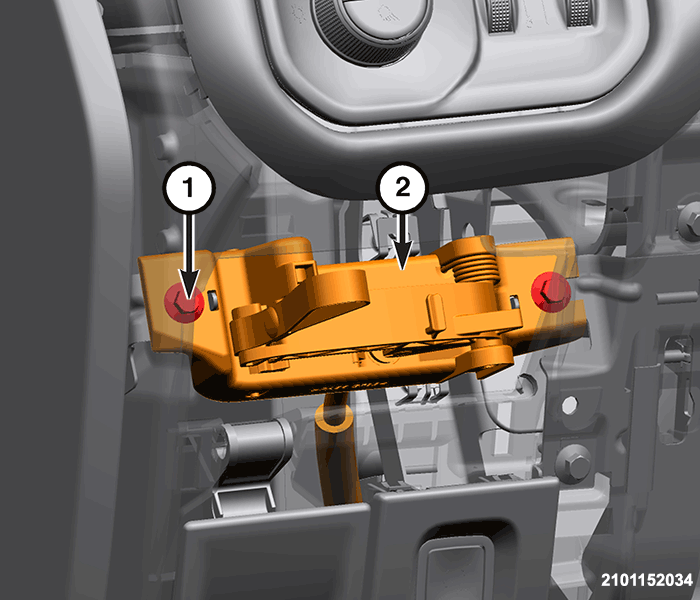

7. Remove the two fasteners (1). Remove the MPR lever (2) from the interior panel.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the MPR lever (2) into the interior panel. Install the two fasteners (1) and tighten snug.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the MPR lever cover (1)

   Courtesy of CHRYSLER GROUP, LLC

3. Route cable (2) through bulkhead and install the grommet (1).

   Courtesy of CHRYSLER GROUP, LLC

4. Install cable (1) in to the retention bracket (2).

   Courtesy of CHRYSLER GROUP, LLC

5. Install the lower cable to the upper cable (2). Be sure the two tabs on the lower cable (1) are secured in place.
6. Remove supports and lower the vehicle.
7. Release the parking brake.
