U0125-Lost Communication With Dynamics Sensor: Notes
WARNING: This page is about a different car, the 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

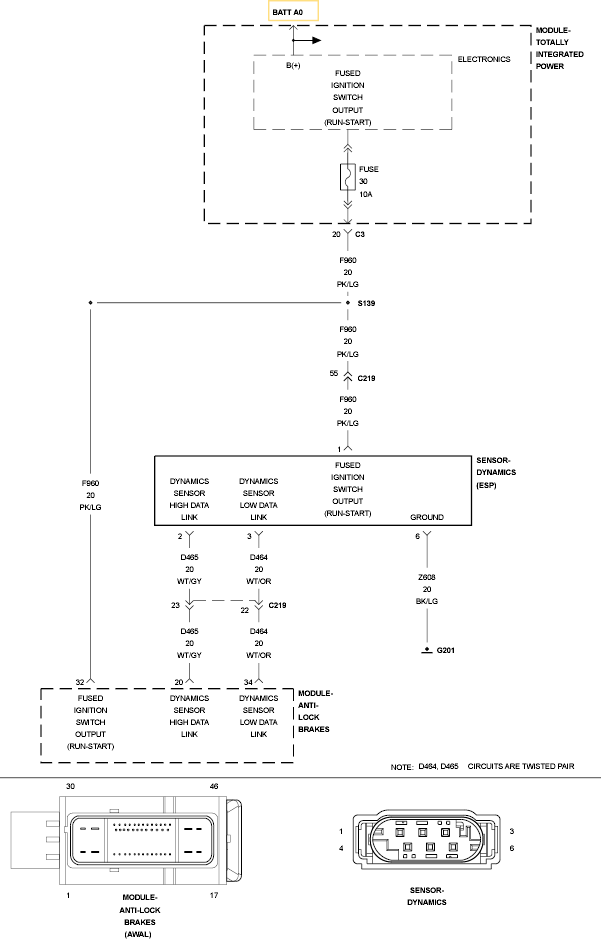

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
NOTE:
The Electronic Stability Control (ESC) may also be referred to as Electronic Stability Program (ESP) depending on the vehicle model year and configuration. Certain components may also reference ESP, ESC, or use the traction control symbol.
