Removal And Installation
WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL

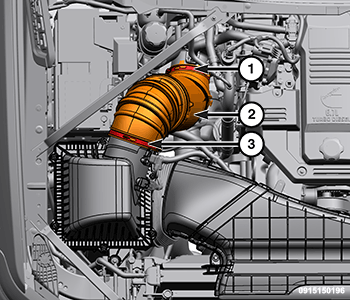

- Loosen the clamp (1) and remove the clean air hose (2) from turbocharger.
- Loosen the clamp (3) and remove the clean air hose (2).
INSTALLATION
- Install the clean air hose (2) and securely tighten the clamp (3).
- Install the clean air hose (2) to the turbocharger and securely tighten the clamp (1).
