Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

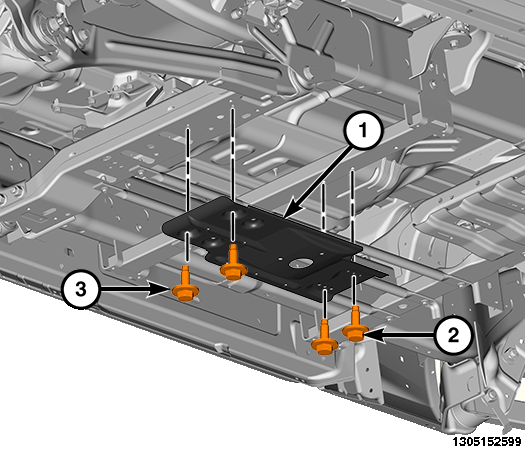

REMOVAL

Raise and support the vehicle, refer to HOISTING, STANDARD PROCEDURE .
Remove the bolts (2).
Remove the bolts (3) and remove the skid plate (1).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

Install the skid plate (1) and install the bolts (3).
Install the bolts (2).
Tighten the bolts (2) to the proper specification. Refer to TORQUE SPECIFICATIONS .
Remove supports and lower the vehicle.
