Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove differential case from the housing. Refer to CASE ASSEMBLY, DIFFERENTIAL, REMOVAL AND INSTALLATION .
Install Plug (special tool #8964, Plug, Differential Bearing) into the end of the case.

Courtesy of CHRYSLER GROUP, LLC
Using a universal 2 jaw puller, remove the bearing (1).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

WARNING:

Use welding gloves when handling heated components. Failure to follow these instructions will result in personal injury.

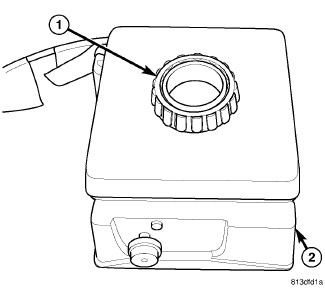

Heat differential case bearings (1) with bearing heater (2).
With welding gloves or tongs install bearings on differential case.

Courtesy of CHRYSLER GROUP, LLC

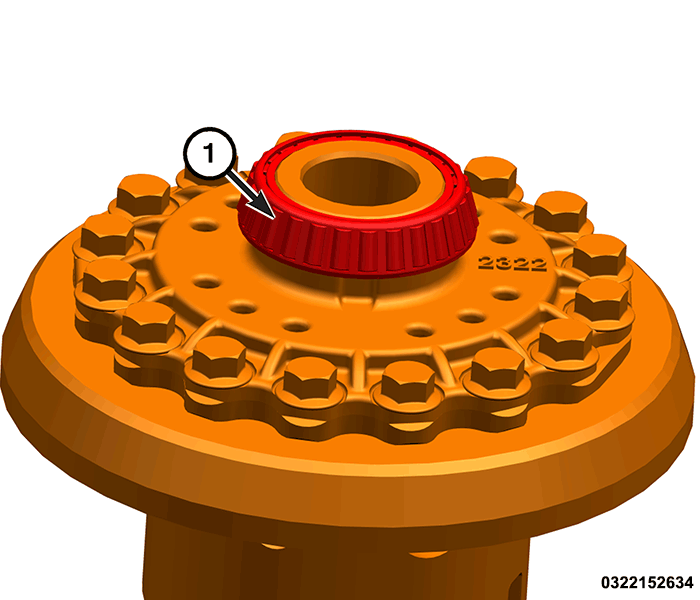

Install differential case bearings (1) with Installer (special tool #2067500030, Installer, Differential Carrier Bearing) and Handle (special tool #C-4171, Driver Handle, Universal).
Install differential case into housing. Refer to CASE ASSEMBLY, DIFFERENTIAL, REMOVAL AND INSTALLATION .
