Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0186099Courtesy of CHRYSLER GROUP, LLC

REMOVAL

  1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .

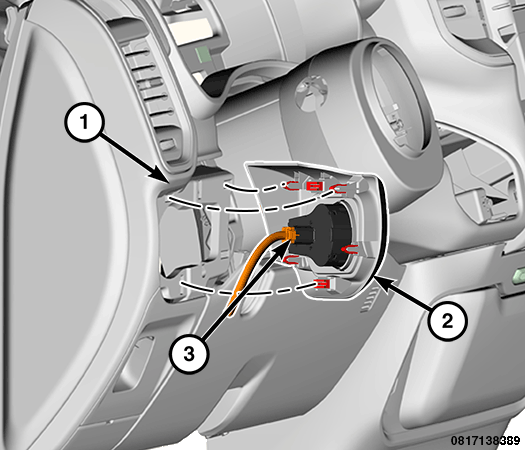

  2. Using a (special tool #C-4755, Trim Stick) or equivalent, separate the switch and bezel assembly (2) from the instrument panel (1) and disconnect the wire harness connector (3).
    GC0186060Courtesy of CHRYSLER GROUP, LLC

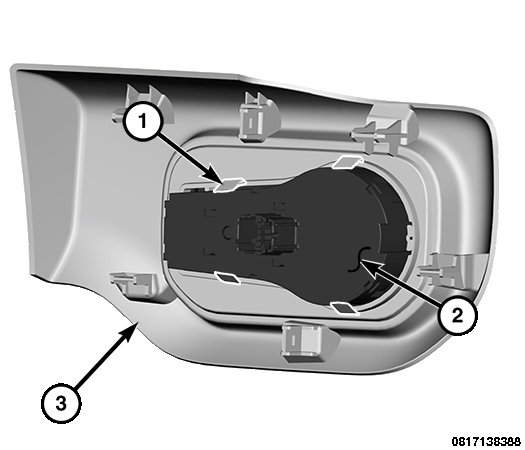

  3. Release the four retaining tabs (1) and remove the switch (2) from the bezel (3).

INSTALLATION

  1. Install the switch (2) onto the bezel (3) and seat the four retaining tabs (1) fully.
    GC0186099Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wire harness connector (3) and seat the switch and bezel assembly (2) into the instrument panel (1) fully.
  3. Connect the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .
