Fog Lamp Alignment
WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A properly aimed front fog lamp will project a pattern on the alignment screen 10 centimeters (4 inches) below the fog lamp centerline and straight ahead of the lamp.
- Turn the fog lamps ON.

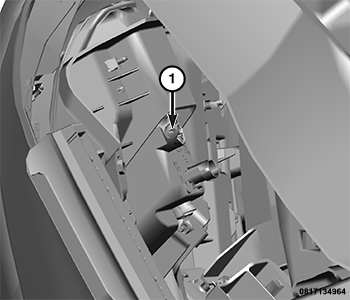

- Rotate the thumbwheel screw (1) located behind the bumper on the back of each fog lamp unit to adjust the beam height as required.
