Removal And Installation

Courtesy of CHRYSLER GROUP, LLC

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .
2. Locate the brake lamp sensor on the brake pedal support bracket under the instrument panel.

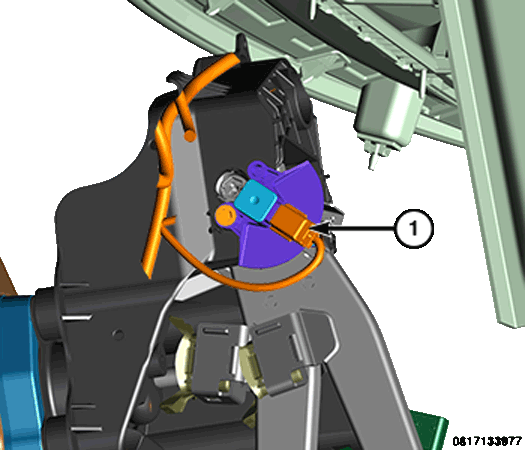

3. Disconnect the wire harness connector (1) from the brake lamp sensor.

   Courtesy of CHRYSLER GROUP, LLC

4. Remove the mounting screw (1) from the sensor and the bracket.
5. Pull the sensor (3) straight away from the keyed hole to remove it from the bracket.
6. Remove the brake pedal sensor from the vehicle.

INSTALLATION

1. Position the sensor pin (2) into the bracket on the pedal.
2. Install the sensor (3) and install the screw (1).

   Courtesy of CHRYSLER GROUP, LLC

3. Connect the wire harness connector (1).
4. Connect the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .
5. Perform the "Brake Pedal Learn" procedure as follows:
   1. Park the vehicle on level ground.
      NOTE:

      When performing the Brake Pedal Calibration Learn routine, make sure the brake pedal is NOT  pressed.

      NOTE:

      Not all PCMs support the Brake Pedal Learn. If the PCM supports it the routine will be available.

   2. With the scan tool, under the ABS "Miscellaneous Functions" menu, select and run the "Brake Pedal Calibration" routine.
   3. With the scan tool, under the PCM "Miscellaneous Functions" menu, select and run the "Brake Pedal Learn" routine.
