Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

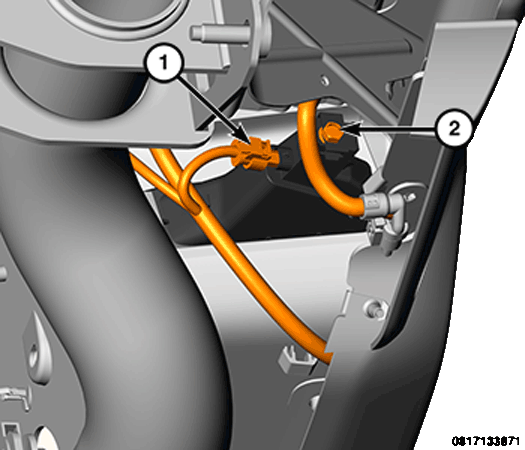

GC0186130Courtesy of CHRYSLER GROUP, LLC

REMOVAL

  1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .
  2. Raise and support the vehicle, Refer to HOISTING, STANDARD PROCEDURE .
  3. Disconnect the wire harness connector (1).
  4. Remove the bolt (2).

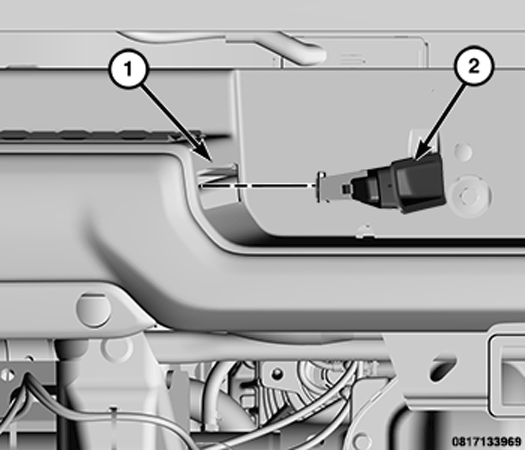

    GC0185190Courtesy of CHRYSLER GROUP, LLC
  5. Remove the lamp (2) from the bumper opening (1).

INSTALLATION

  1. Install the lamp (2) into the bumper opening (1) and seat fully.
    GC0186130Courtesy of CHRYSLER GROUP, LLC
  2. Install the bolt (2) and connect the wire harness connector (1).
  3. Connect the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .
