Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

  1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .

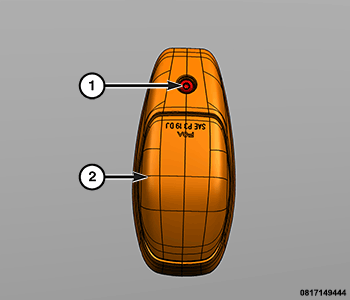

    GC0185802Courtesy of CHRYSLER GROUP, LLC
  2. Remove the screw (1) securing the cab lamp (2) to the roof.

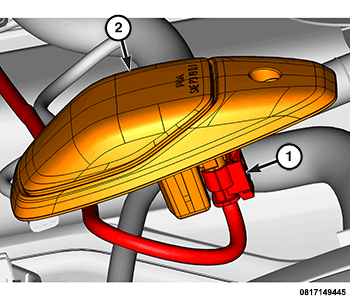

    GC0184867Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (1) from the cab lamp (2) and remove lamp from vehicle.

INSTALLATION

  1. Position the cab lamp to the vehicle and connect the wire harness connector.
  2. Install the screw securing the cab lamp to the roof and tighten securely.
  3. Connect the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .
