Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

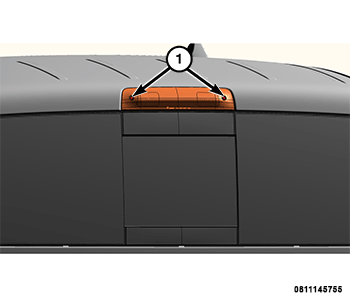

GC0185577Courtesy of CHRYSLER GROUP, LLC

REMOVAL

  1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .
  2. Remove the screws (1).

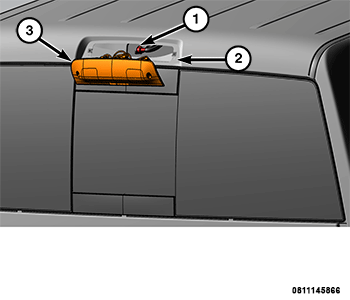

    GC0185206Courtesy of CHRYSLER GROUP, LLC
  3. Separate the light (3) from the body opening (2) and disconnect the wire harness connector (1).

INSTALLATION

  1. Connect the wire harness connector (1) and install the light (3).
    GC0185577Courtesy of CHRYSLER GROUP, LLC
  2. Install the screws (1).
  3. Connect the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .
