Removal And Installation
WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL
- Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .

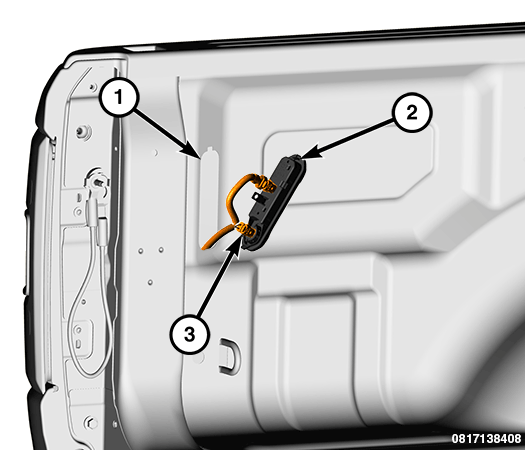

- From inside the cargo box, release the tabs securing the lamp (2) to the box and remove the lamp.
- Disconnect the wire harness connectors (3).
INSTALLATION
- Connect the wire harness connectors (3).
- Position the lamp (2) into the mounting hole (1) in the box and seat the clips fully.
- Connect the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .
