Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Shown on a driver seat, passenger side is slightly different as noted in the procedure.

Shown on a manual seat, power seat removal is similar.

REMOVAL

Before proceeding with the following repair procedure, review all warnings and cautions. Refer to SEATS, FRONT, WARNING .

Courtesy of CHRYSLER GROUP, LLC

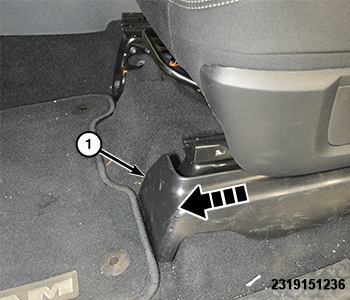

Remove the seat track cover (1) by pulling forward firmly.
Before proceeding with the following repair procedure, review all warnings and cautions. Refer to SEATS, FRONT, WARNING .

Courtesy of CHRYSLER GROUP, LLC

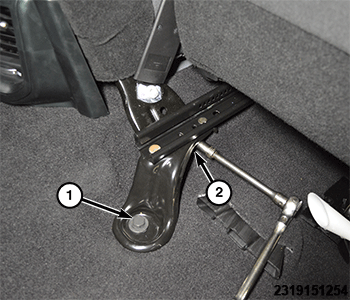

For passenger seat removal, move the seat to the full forward position and remove the two nuts (2) at the rear of the passenger seat track.
Remove the two seat bolts (1) at the rear of the passenger seat.

Courtesy of CHRYSLER GROUP, LLC

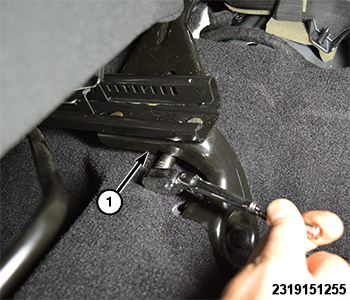

For passenger seat removal, move the passenger seat to the full rearward position and remove the two nuts (1) at the front of the passenger seat track
Remove the two seat bolts (1) at the front of the passenger seat.
Move the passenger seat outboard in the vehicle, enough to remove the center seat studs out of the seat track.

Courtesy of CHRYSLER GROUP, LLC

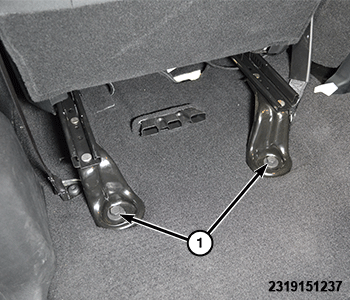

For driver seat removal, move the seat in the full forward position and remove both seat bolts (1) at the rear of the seat.

Courtesy of CHRYSLER GROUP, LLC

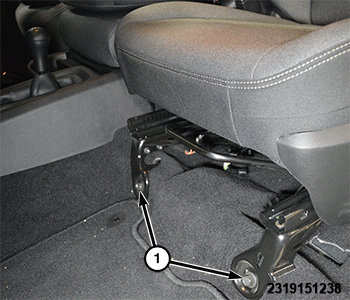

For driver seat removal, move the seat in the full rearward position and remove both seat bolts (1) at the front of the seat.
Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
Tilt the seat up and unclip and disconnect the wire harness connectors, then remove the seat.

INSTALLATION

Position the front seat into the vehicle. Route and connect the wire harness connectors.
Install all the seat bolts loosely, then tighten the front seat bolts to the proper specification. Refer to TORQUE SPECIFICATIONS .
Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
Install and tighten the center seat nuts to the proper specification. Refer to TORQUE SPECIFICATIONS .
Install the seat track cover.
The supplemental restraint system verification test procedure should be performed following service of any supplemental restraint system component. Refer to RESTRAINTS-SYSTEM-VERIFICATION-TEST .
