Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
2. Remove the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

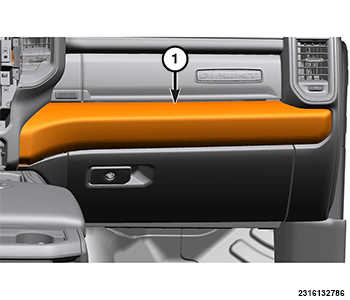

3. Using a trim stick or equivalent, remove the IP mid panel (1).

   Courtesy of CHRYSLER GROUP, LLC

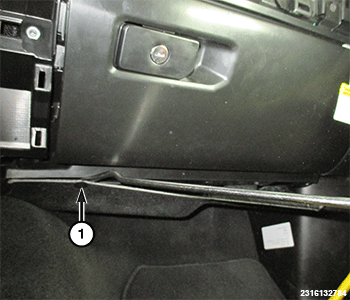

4. Using a trim stick or equivalent, remove the three push retainers (1) and remove the lower IP closeout.

   Courtesy of CHRYSLER GROUP, LLC

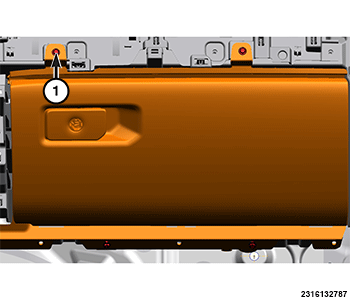

5. Remove the four glove box screws (1).

   Courtesy of CHRYSLER GROUP, LLC

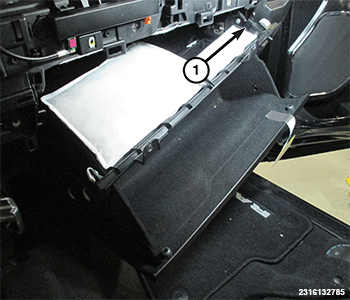

6. Release the glove box from the retaining clips and disconnect the wire harness connector (1) while removing the glove box from the IP.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Connect the wire harness connector (1) while positioning the glove box to the IP fully seating retaining clips.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the mounting screws (1) and tighten securely.
3. Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION .
4. Install the lower IP closeout.
5. Install the IP mid panel.
6. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
