Removal And Installation
WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL
- Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .

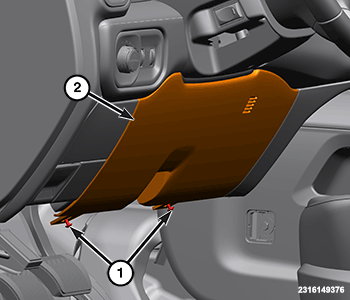

- Remove the two fasteners (1) that secure the bottom of the steering column opening cover to the instrument panel.
- Using a trim stick or equivalent, disengage the retainer clip that secures the hood release to the steering column opening cover.

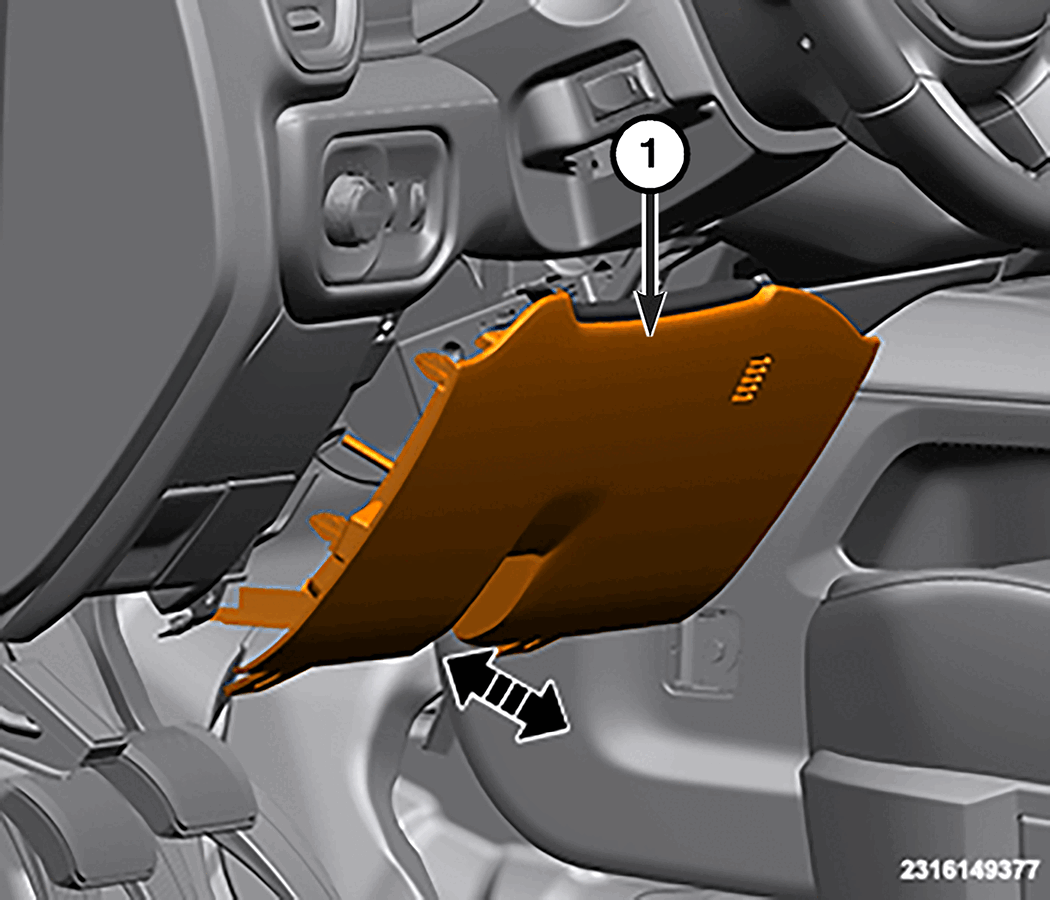

- Using a trim stick or equivalent, release the retainer clips that secure the steering column opening cover to the instrument panel and lower the cover.

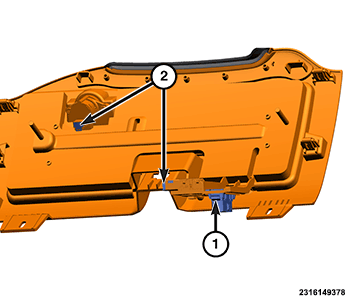

- Disconnect wire harness connectors (2) and release the side tabs to remove data link connector (1) from cover.
- Remove cover.
INSTALLATION
- Position the hood release to the column opening cover and fully engage the retainer clip that secures the hood release handle to the steering column opening cover.
- Install data link connector to the cover and connect wire harness connectors.
- Position the steering column opening cover to the instrument panel and fully engage the retainer clips to the instrument panel.
- Install and securely tighten the two fasteners for the steering column opening cover to the instrument panel.
- Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
