Outer Air Outlets

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

NOTE:

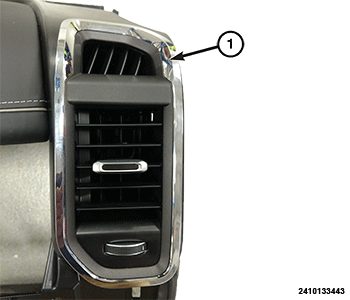

Right side shown in the illustration, left side similar.

NOTE:

Take the proper precautions to protect the instrument panel from cosmetic damage.

Courtesy of CHRYSLER GROUP, LLC

Using a trim stick or equivalent, remove the outer air outlet (1).

INSTALLATION

NOTE:

Take the proper precautions to protect the instrument panel from cosmetic damage.

Position the air outlet to the instrument cluster bezel and engage the retaining clips. Be certain the retainers are fully engaged.
