Lamp, Cargo: Installation: Removal

WARNING: This page is about a different car, the 2016 RAM 3500 HD and 2016 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.

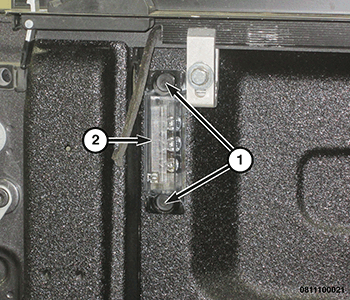

    Fig 1: Cargo Lamp & Screws
    GC0173534Courtesy of CHRYSLER GROUP, LLC
  2. Remove two screws (1) securing the lamp.

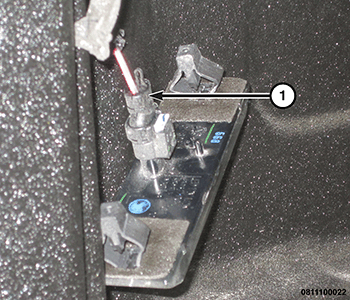

    Fig 2: Cargo Lamp Connector
    GC0173497Courtesy of CHRYSLER GROUP, LLC
  3. Pull free from the vehicle bed to gain access to and disconnect the wiring harness connector (1).
