INDICATORS, Instrument Cluster: Description: Description
The Instrument Cluster (IC) for this vehicle has provisions for up to 29 International Control and Display Symbol icon indicators and 4 analog gauges, that are all controlled by the IC electronic circuitry and standard on all models. Refer to GAUGE PACK, Instrument Cluster, Description . Some of the indicators are automatically configured when the IC is connected to the vehicle's electrical system for compatibility with certain optional equipment or equipment required for regulatory purposes in certain markets. While each IC may have provisions for indicators to support every available option, the configurable indicators will not function in vehicles that do not have the equipment that an indicator supports.
Each indicator in the IC, except those located within a VFD unit, is illuminated by a dedicated Light Emitting Diode (LED) that is soldered onto the electronic circuit board. IC illumination is accomplished by several dimmable LED units, which illuminate each of the gauge dial faces for visibility when the exterior lighting is turned ON. These LED units as well as the IC assembly are serviced only as a complete unit with the instrument cluster and, if damaged or ineffective, the entire instrument cluster assembly must be replaced. The IC lens and the hood and mask unit are the only components of the IC assembly that can be serviced separately.

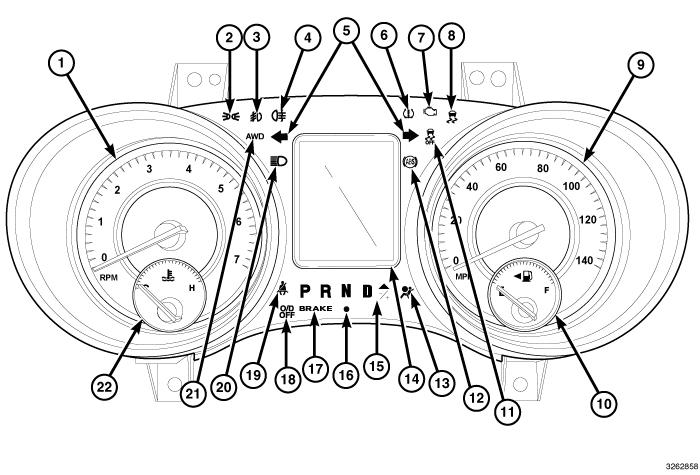

The IC includes provisions for the following indicators:
- Airbag Indicator (13)
- Ajar Indicators (14) - in the EVIC display
- Antilock Brake System (ABS) Indicator (12)
- All Wheel Drive (AWD) Indicator (21)
- Brake Indicator (18) - text only for U.S. market, icon only for markets outside U.S.
- Change Oil Indicator - textual message in odometer/EVIC display
- Charging Indicator (14) - in the EVIC display
- Cruise Indicator (14) - in the EVIC display
- Electronic Stability Control (ESC) System Activation Indicator (8)
- Electronic Throttle Control (ETC) Indicator (14) - in the EVIC display
- Engine Coolant Temperature Indicator (14) - in the EVIC display
- Front Fog Lamp Indicator (3) - with optional front fog lamps only
- Fuel Saver Indicator- ECOnomizer (ECO) (14) - in the EVIC display
- Gas Cap Indicator (14) - in the EVIC display
- Gear Selector Indicator (15)
- High Beam Indicator (20)
- Low Fuel Indicator (14) - in the EVIC display
- Low Oil Pressure Indicator (14) - in the EVIC display
- Malfunction Indicator Lamp (MIL) (7) - only on domestic market vehicles
- No Bus Indicator - in the EVIC display
- Seat Belt Indicator (19)
- Security Indicator (16)
- Tire Pressure Monitor (TPM) Indicator (6)
- Electronic Stability Control (ESC) OFF Indicator (11)
- Turn Signal (Right and Left) Indicators (5)
The IC also includes the following Liquid Crystal Display (LCD) units :
- Electronic Vehicle Information Center (EVIC) Display Refer to CENTER, Electronic Vehicle Information, Description .
For more information on the International Control and Display Symbol icons, refer to International Vehicle Control and Display Symbols, Description .
