COVER, Structural Dust: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle.

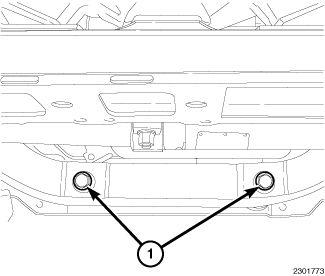

    Fig 1: Steering Rack To Frame Mounting Bolts
    GC0088066Courtesy of CHRYSLER LLC
  2. Remove the steering rack to frame mounting bolts (1) and lower the steering rack enough to gain clearance for the structural dust cover removal.

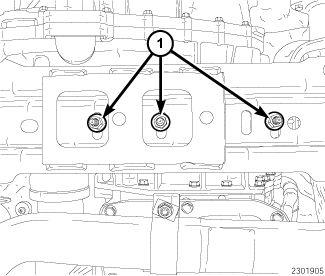

    Fig 2: Transmission Mount To Crossmember Retaining Nuts
    GC0088067Courtesy of CHRYSLER LLC
  3. Remove the transmission mount to crossmember retaining nuts (1).
  4. Using a suitable jack, lift the transmission enough to gain clearance for the structural dust cover removal.

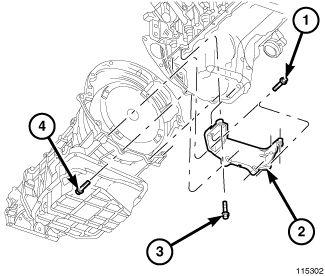

    Fig 3: Structural Cover
    GC0092017Courtesy of CHRYSLER LLC
  5. Remove the structural dust cover retaining bolts (1, 3 & 4).
  6. Remove the structural dust cover (2).
