Diagnostic Test

WARNING: This page is about a different variant/trim than selected.

ACTIVE DIAGNOSTIC TROUBLE CODE (DTC)
NOTE:
Diagnose any Misfire DTCs before continuing.
1. Ignition on, engine not running.
2. With a scan tool, read the DTCs.
  Is the DTC active at this time?

  Yes
  - Go To 2.
  No
  - Refer to INTERMITTENT CONDITION and perform the INTERMITTENT CONDITION diagnostic procedure.
CHECKING THE MDS SOLENOID CONTROL CIRCUIT BETWEEN THE C101 INLINE HARNESS CONNECTOR AND THE PCM

Fig 1: Checking MDS Solenoid Control Circuit Between Inline Harness Connector & PCM
Courtesy of CHRYSLER LLC

NOTE:
The DTC must not be active for the actuator test to operate properly, clear all DTC before continuing.
1. Turn the ignition off.
2. Disconnect the C101 harness connector.
3. Using a 12-volt test light, jumper from the Ground circuit and the (K452) MDS Solenoid No. 4 Control circuit in the C101 harness connector (PCM side).
4. Turn the ignition on.
5. Using the scan tool, actuate the MDS Solenoid No. 4.
  Does the 12-volt test light flash on and off?

  Yes
  - Go To 3.
  No
  - Go To 4.

MDS SOLENOID RESISTANCE

Fig 2: Checking MDS Solenoid For Resistance

Courtesy of CHRYSLER LLC

Turn the ignition off.

Measure the resistance between the Ground circuit and the (K452) MDS Solenoid No. 4 Control circuit in the C101 harness connector (MDS side).

NOTE:

It is important to follow the below temp/resistance values to insure an accurate reading.

MDS SOLENOID RESISTANCE
TEMPERATURE VALUE	RESISTANCE - MINIMUM	RESISTANCE - MAXIMUM
-18° C (0° F)	7.22 ↑©	8.12 ↑©
0° C (32° F)	7.92 ↑©	8.82 ↑©
20° C (68° F)	8.72 ↑©	9.62 ↑©
38° C (100° F)	9.42 ↑©	10.32 ↑©
66° C (150° F)	10.62 ↑©	11.52 ↑©
93° C (200° F)	11.82 ↑©	12.72 ↑©
121° C (250° F)	12.82 ↑©	13.72 ↑©
149° C (300° F)	14.02 ↑©	14.92 ↑©

Is the resistance within an acceptable range?

Yes

Go To 12.

Go To 8.

GROUND CIRCUIT OPEN (PCM SIDE)

Fig 3: Checking Ground Circuit For Open
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Using a 12-volt test light connected to the 12-volts, probe the Ground circuit in the C101 harness connector (PCM side).
  Does the test light illuminate brightly?

  Yes
  - Go To 5.
  No
  - Repair the open in the Ground circuit.
  - Refer to POWERTRAIN VERIFICATION TEST and perform the POWERTRAIN VERIFICATION TEST.
(K452) MDS SOLENOID NO. 4 CONTROL CIRCUIT SHORTED TO BATTERY VOLTAGE (PCM SIDE)

Fig 4: Checking MDS Solenoid No. 4 Control Circuit For Short To Battery Voltage
Courtesy of CHRYSLER LLC
1. Disconnect the PCM C1 harness connector.
2. Ignition on, engine not running.
3. Measure the voltage on the (K452) MDS Solenoid No. 4 Control circuit in the C101 harness connector.
  Does the Voltmeter indicate voltage present?

  Yes
  - Repair the short to battery voltage in the (K452) MDS Solenoid No. 4 Control circuit between the PCM harness connector and C101 harness connector.
  - Refer to POWERTRAIN VERIFICATION TEST and perform the POWERTRAIN VERIFICATION TEST.
  No
  - Go To 10.
(K452) MDS SOLENOID NO. 4 CONTROL CIRCUIT SHORTED TO GROUND (PCM SIDE)

Fig 5: Checking MDS Solenoid No. 4 Control Circuit For Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance between ground and the (K452) MDS Solenoid No. 4 Control circuit in the C101 harness connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the short to ground in the (K452) MDS Solenoid No. 4 Control circuit between the PCM harness connector and the C101 harness connector.
  - Refer to POWERTRAIN VERIFICATION TEST and perform the POWERTRAIN VERIFICATION TEST.
  No
  - Go To 7.
(K452) MDS SOLENOID NO. 4 CONTROL CIRCUIT OPEN (PCM SIDE)

Fig 6: Checking MDS Solenoid No. 4 Control Circuit For Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K452) MDS Solenoid No. 4 Control circuit from the C101 harness connector to the PCM C2 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace and program the Powertrain Control Module in accordance with the service information. Refer to MODULE, Powertrain Control , Removal .
  - Refer to POWERTRAIN VERIFICATION TEST and perform the POWERTRAIN VERIFICATION TEST.
  No
  - Repair the open in the (K452) MDS Solenoid No. 4 Control circuit between the C101 harness connector and the PCM harness connector.
  - Refer to POWERTRAIN VERIFICATION TEST and perform the POWERTRAIN VERIFICATION TEST.
GROUND CIRCUIT OPEN (MDS SIDE)

Fig 7: Checking Ground Circuit For Open
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Gain access to the MDS Solenoid. Refer to SOLENOID, Multiple Displacement , Removal , 5.7L .
3. Disconnect the MDS harness connector.
4. Measure the resistance of the Ground circuit between the C101 harness connector and the MDS harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 9.
  No
  - Repair the open in the Ground circuit.
  - Refer to POWERTRAIN VERIFICATION TEST and perform the POWERTRAIN VERIFICATION TEST.
(K452) MDS SOLENOID NO. 4 CONTROL CIRCUIT SHORTED TO BATTERY VOLTAGE (MDS SIDE)

Fig 8: Checking MDS Solenoid Control Circuit For Short To Battery Voltage
Courtesy of CHRYSLER LLC
1. Ignition on, engine not running.
2. Measure the voltage on the (K452) MDS Solenoid No. 4 Control circuit in the MDS Solenoid No. 4 harness connector.
  Does the Voltmeter indicate voltage present?

  Yes
  - Repair the short to battery voltage in the (K452) MDS Solenoid No. 4 Control circuit between the C101 harness connector and the MDS connector.
  - Refer to POWERTRAIN VERIFICATION TEST and perform the POWERTRAIN VERIFICATION TEST.
  No
  - Go To 10.
(K452) MDS SOLENOID NO. 4 CONTROL CIRCUIT SHORTED TO GROUND (MDS SIDE)

Fig 9: Checking MDS Solenoid Control Circuit For Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance between ground and the (K452) MDS Solenoid No. 4 Control circuit in the MDS Solenoid No. 4 harness connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the short to ground in the (K452) MDS Solenoid No. 4 Control circuit between the C100 harness connector and the MDS harness connector.
  - Refer to POWERTRAIN VERIFICATION TEST and perform the POWERTRAIN VERIFICATION TEST.
  No
  - Go To 11.
(K452) MDS SOLENOID NO. 4 CONTROL CIRCUIT OPEN (MDS SIDE)

Fig 10: Checking MDS Solenoid No. 4 Control Circuit For Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K452) MDS Solenoid No. 4 Control circuit from the MDS Solenoid No. 4 harness connector to the C101 harness connector (MDS side).
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the MDS Solenoid in accordance with the Service Information. Refer to SOLENOID, Multiple Displacement , Removal , 5.7L .
  - Refer to POWERTRAIN VERIFICATION TEST and perform the POWERTRAIN VERIFICATION TEST.
  No
  - Repair the open in the (K452) MDS Solenoid No. 4 Control circuit between the C101 harness connector and the MDS harness connector.
  - Refer to POWERTRAIN VERIFICATION TEST and perform the POWERTRAIN VERIFICATION TEST.

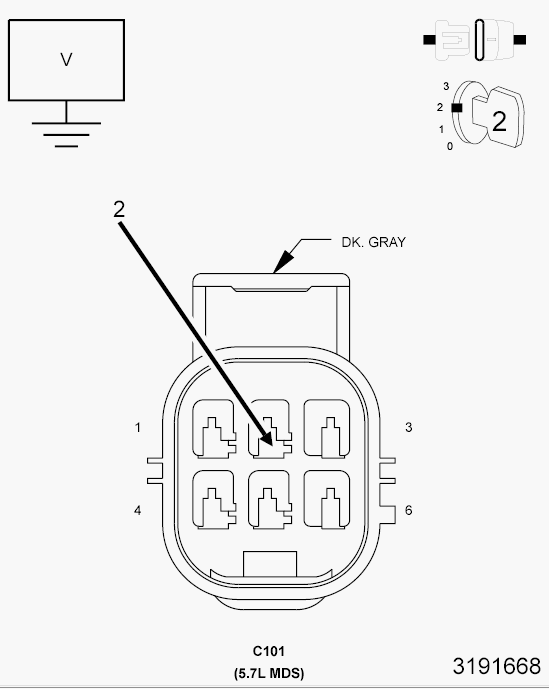

CHECKING HARNESS CONNECTOR C101 AND GROUND CONNECTION

Fig 11: Checking Harness Connector & Ground Connection
Courtesy of CHRYSLER LLC
1. Inspect the C101 harness connector.
2. Make sure the Ground terminal and Control terminal are fastened securely into the connector and there are no signs of corrosion or damage.
3. Check wiring to terminal connection. Look for an internal broken wire under the insulation.
4. Inspect the Ground for a tight, clean connection.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Refer to POWERTRAIN VERIFICATION TEST and perform the POWERTRAIN VERIFICATION TEST.
  No
  - Refer to INTERMITTENT CONDITION and perform the INTERMITTENT CONDITION diagnostic procedure.
