LAMP, Tail Stop Turn: Removal: Lamp

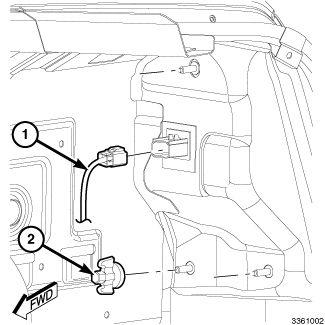

Fig 1: Wire Harness Connector & Plastic Wing Nuts

Courtesy of CHRYSLER LLC

Disconnect and isolate the battery negative cable.
From inside the trunk, peel back the trunk trim from over the lamp seat.
Disconnect the body wire harness connector (1) from the rear lamp unit connector receptacle.
Remove the three plastic wing nuts (2) that secure the lamp studs on the inside of the lamp seat.

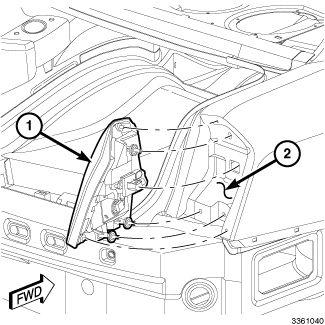

Fig 2: Rear Lamp Unit & Lamp Seat
Courtesy of CHRYSLER LLC
From the outside of the vehicle, pull the rear lamp unit (1) straight out of the lamp seat (2) in the end of the quarter panel.
