LAMP, Tail Stop Turn: Removal: Bulb
NOTE:
The rear lamp unit for this vehicle includes multiple Light-Emitting Diode (LED) units for the park (or tail) lamps, the brake (or stop) lamps, the turn signal lamps (domestic market vehicles only) and the rear fog lamps (export market or if equipped only). All rear lamp units have one clear incandescent bulb for the backup (or reverse) lamps. Export market vehicles also have an amber incandescent bulb in each rear lamp for turn signals. The LED units are service only as a unit with their respective rear lamp unit. The backup lamp bulbs and amber turn signal bulbs (export only) are serviced individually. The service procedures for each bulb are the same only the bulb sizes and types are different.
- Disconnect and isolate the battery negative cable.

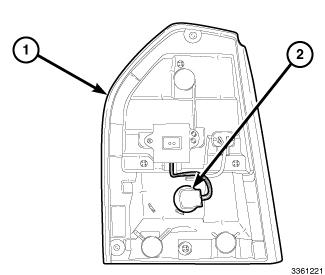

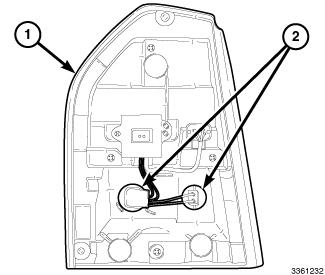

- Remove the rear lamp unit (1) from the vehicle. Refer to LAMP, Tail Stop Turn, Removal .
- Firmly grasp the appropriate bulb socket (2) on the back of the lamp housing and rotate it counterclockwise about 30 degrees to unlock it.
- Pull the socket and bulb straight out of the lamp.
- Pull the base of the bulb straight out of the socket.
