LAMP, License Plate: Removal: Lamp

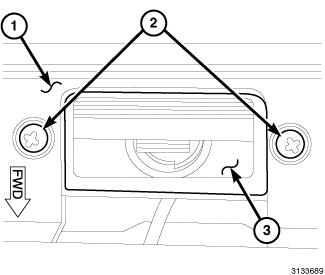

Fig 1: Two Screws, License Plate Lamp & Rear Fascia

Courtesy of CHRYSLER LLC

Disconnect and isolate the battery negative cable.
Remove the two screws (2) that secure the license plate lamp (3) to the rear fascia (1).
Slide the license plate lamp to one side of the fascia opening far enough to lower one end of the lamp through the opening, then lower the opposite end through the opening.

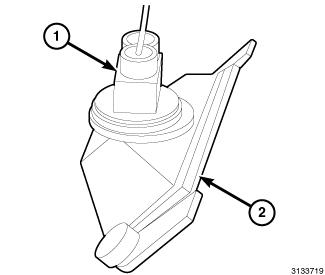

Fig 2: Bulb Socket & Lamp Housing
Courtesy of CHRYSLER LLC
Firmly grasp the bulb socket (1) on the top of the lamp housing (2) and rotate it counterclockwise about 30 degrees to unlock it.
Pull the socket and bulb straight out of the lamp housing.
Remove the lamp lens and housing from the vehicle.
