LAMP, License Plate: Removal: Bulb

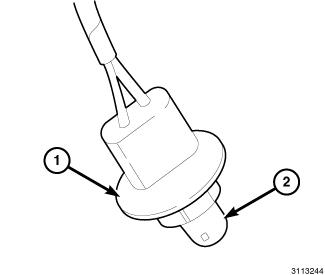

Fig 1: Bulb & Socket
GC0144690Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the license plate lamp from the rear fascia. Refer to LAMP, License Plate, Removal .
  3. Pull the base of the bulb (2) straight out of the socket (1).
