LAMP, Fog: Removal: Lamp

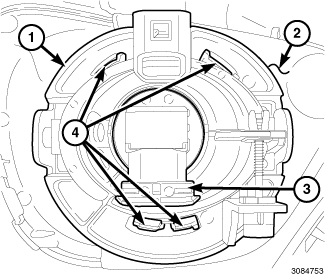

Fig 1: Fascia, Connector Receptacle, Four Latch Features & Front Fog Lamp Mounting Ring
GC0144672Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Raise and support the vehicle.
  3. Remove the front belly pan from the underbody. Refer to BELLY PAN, Removal .
  4. Reach behind the front fascia (2) to access and disconnect the headlamp and dash wire harness connector from the front fog lamp bulb connector receptacle (3).
  5. Using a trim stick or another suitable wide flat-bladed tool, carefully pry between the front fog lamp mounting ring (1) and the back of the front fascia as necessary to disengage the four latch features (4) integral to the back of the fog lamp seat in the fascia from the slots in the mounting ring.
  6. Remove the front fog lamp unit from the back of the fascia.
