Cluster Lens, Hood, And Mask

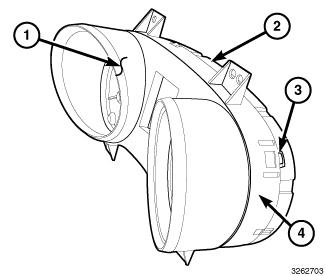

Fig 1: Instrument Cluster Assembly, Latches, Mask Assembly & Instrument Cluster Body
GC0144822Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the instrument cluster assembly (1) from the instrument panel. Refer to step  1.
  3. Working around the perimeter disengage the latches (3), and remove the instrument cluster lens, hood, and mask assembly (4).
  4. Remove the lens, hood, and mask assembly from the instrument cluster body (2).
  5. Working around the perimeter of the left or right inner hood assemblies, disengage each of the latches that secure the panels to the cluster body.
