Sunroof, Dual Pane: Removal: Removal

Fig 1: Four Drain Tubes

Courtesy of CHRYSLER LLC

NOTE:

For exploded view and call outs, refer to Sunroof, Dual Pane, Description .

Move glass panel to the fully closed position.
Disconnect and isolate the battery negative cable.
Lower the headliner in the vehicle enough to gain access to the sunroof assembly. Refer to HEADLINER, Removal .
Disconnect the four drain tubes (1) from sunroof housing.
Disconnect the sunroof wire harness electrical connector.

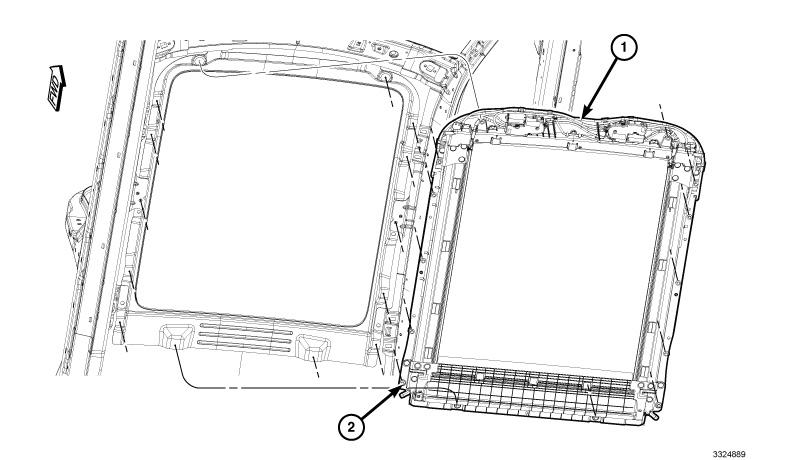

Fig 2: Fourteen Bolts & Sunroof Assembly
Courtesy of CHRYSLER LLC
Loosen the fourteen bolts (2) attaching sunroof assembly.
With the help of an assistant, support the sunroof and remove the fourteen bolts (2) attaching the sunroof assembly (1) to the roof panel.
Remove the sunroof assembly (1) from vehicle.
