Instrument Panel: KNEEBLOCKER: Removal: Removal

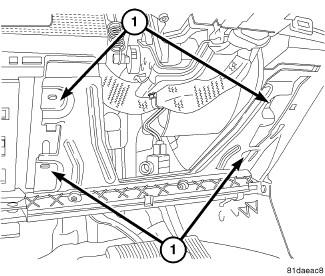

Fig 1: Knee Bolster To Instrument Panel Fastening Screw
GC0122971Courtesy of CHRYSLER LLC
  1. Remove steering column cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
  2. Remove four screws (1) fastening knee bolster to instrument panel.
  3. Remove knee bolster from instrument panel.
