Front






FRONT

1. Remove the wheelhouse splash shield at the transponder requiring service. Splash Shield - Removal

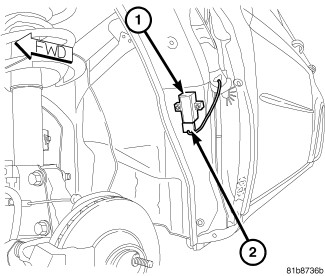

2. Disconnect the wiring harness connector (2) at the transponder (1).
3. Remove the mounting nuts, then remove the transponder (1).
