Kneeblocker - Removal






REMOVAL





1. Remove steering column cover.Steering Column Opening Cover - Removal

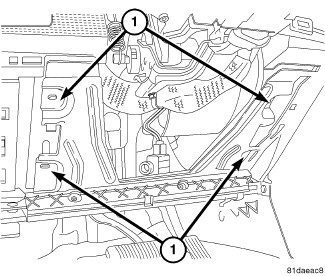

2. Remove four screws (1) fastening knee bolster to instrument panel.
3. Remove knee bolster from instrument panel.
