Instrument Panel End Cap - Removal

REMOVAL

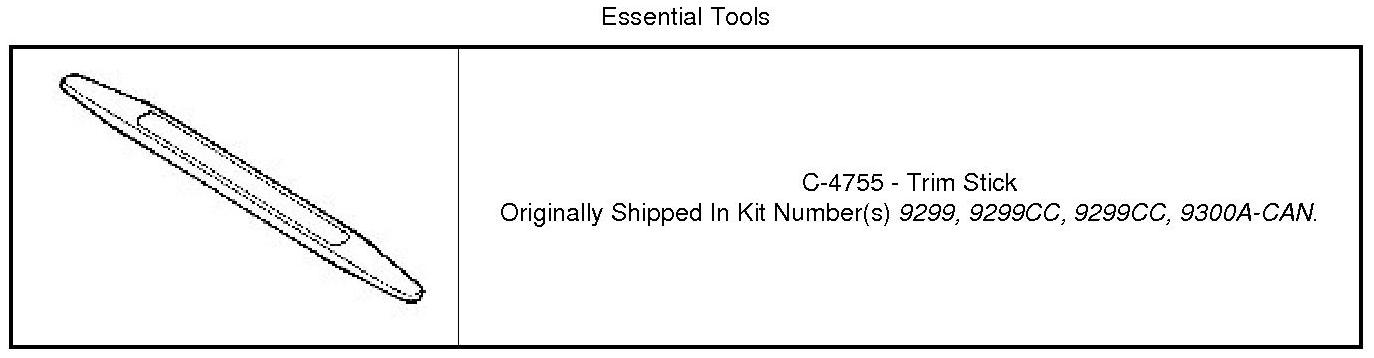

Special Tools:











NOTE: Right side shown, left side similar.

1. Open front door.
2. Partially remove the weatherstrip along the front door opening.
3. Using a trim stick special tool or equivalent, disengage clips holding end cover (2) to instrument panel (3).
