Center Bezel

INSTALLATION - 200C

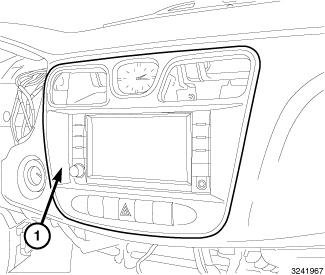

1. Position the center trim bezel (1) near the I/P.
2. Connect the switch bank and clock harness connectors.
3. Align the trim bezel retaining tabs to the I/P. Hand tap around the perimeter to engage the retaining clips.
4. Connect the negative battery cable.
