Seat Cushion Pan - Installation

INSTALLATION





1. Set the seat cushion pan into place on the seat frame.
2. Install the wire harness to the seat pan.
3. Connect the heated seat connector, if equipped.

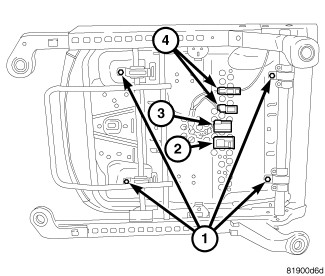

4. Install the seat pan cushion fasteners (1). Tighten to 11 Nm (8 ft.lbs.).
5. Install the seat back.Front Seat Back Recliner - Installation
6. Install the seat into the vehicle.Seat - Installation
