Convertible






REMOVAL





1. Remove seat from vehicle.Seat - Removal
2. Remove front seat cushion side shields.Seat Cushion Side Shields - Removal
3. Remove the seat cushion.

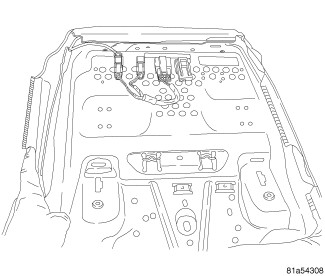

4. Disengage J-clips attaching seat cover to the seat cushion frame.





5. Pull cover off to the hog rings (1).
6. Cut hog rings attaching seat cover seat cushion.
7. Remove the cover from seat cushion.
