Convertible

INSTALLATION

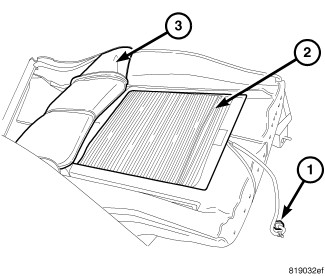

1. Position seat cover (3) on cushion while being careful not to damage heating element (2) and connector, if equipped.
2. Align seat cover with cushion alignment indentations
3. Install hog rings.





4. Engage J-strap attaching seat cover to front of seat cushion frame.
5. Install the seat cushion.
6. Install cushion side shields.Seat Cushion Side Shields - Installation
7. Install seat in vehicle.Seat - Installation
