C-Pillar Trim Panel - Installation

INSTALLATION

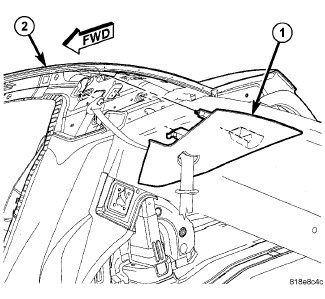

1. Place upper C-pillar trim (1) into position.

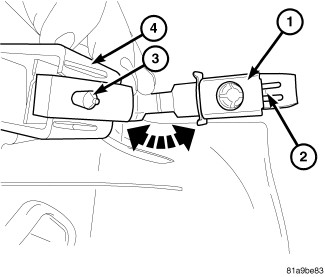

2. Slide tether (2) into tether housing (1) which is clipped into C-pillar panel. Ensure clip engages tether.
3. Install bolt attaching seat belt lower anchor to floor.
