Lower

LOWER

Special Tools:










1. Remove door sill trim panel.Scuff Plate - Removal
2. Fold rear seats down.
3. Remove upper C-pillar trim.C-Pillar Trim Panel - Removal

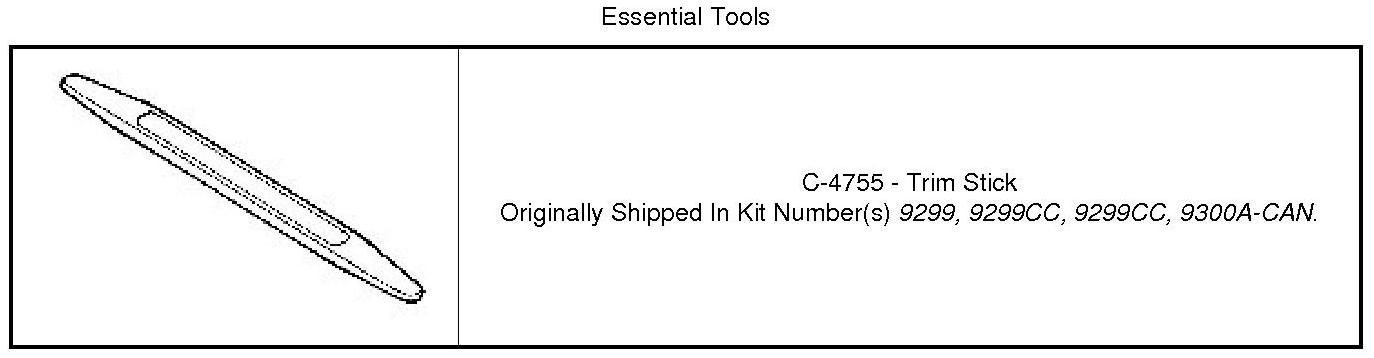

4. Using trim stick or equivalent, disengage the clips (2) from clip locations (1) attaching the lower quarter trim to the body.
5. Remove lower quarter trim from vehicle.
