Bottom-Header






BOTTOM-HEADER





1. Remove the sun visors both left and right sides Visor - Removal.
2. Remove the sun visor support on both the left and right sides Visor - Removal

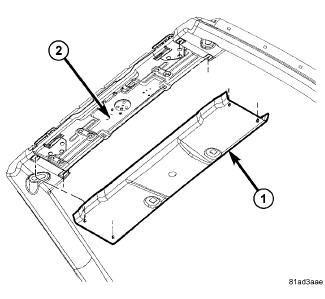

3. Using a trim stick or equivalent, pry on the ends of the windshield header - bottom (1) and remove from windshield header (2).
