Cowl Trim Panel - Removal






REMOVAL

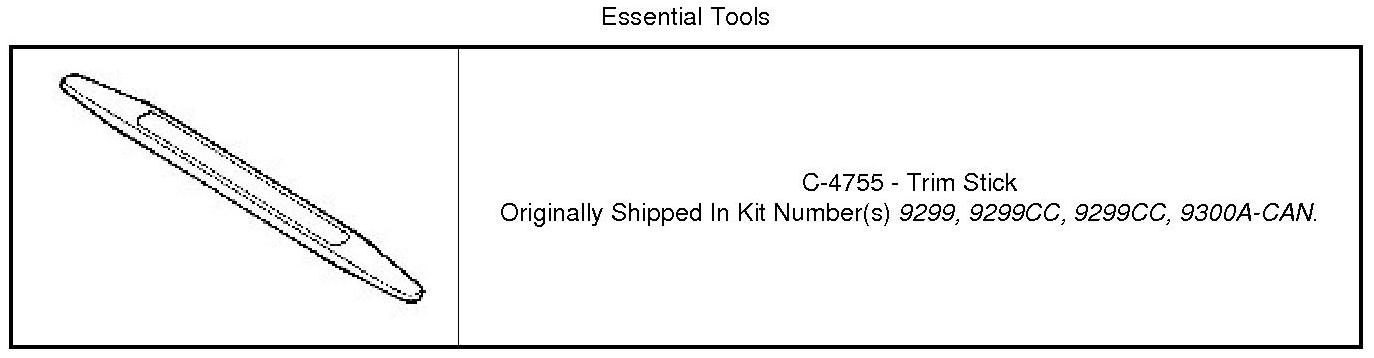

Special Tools:










1. Remove door sill trim panel.Scuff Plate - Removal
2. Using trim stick , disengage cowl trim panel (1) clips from the corresponding locations in the sheet metal (2).
3. Remove cowl trim panel (1) from vehicle.
