Home >> Chrysler >> 2011 >> 200 L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Sun Visor >> Service and Repair >> Visor Support - Removal

Visor Support - Removal






REMOVAL

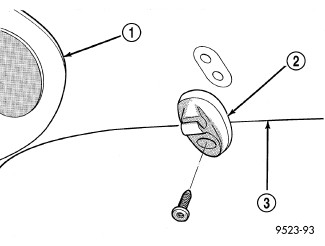

1. Disengage the sun visor (1) from the sun visor support (2).
2. Remove the screw that secures the support to the roof panel and remove the support from the headliner (3).
