Convertible






CONVERTIBLE

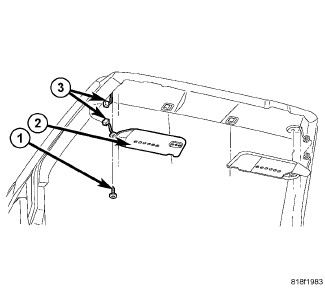

1. Disengage the sun visor (2) from the sun visor support.
2. Remove the two screws (1) that secure the sun visor to the windshield headliner and remove the sun visor from the header.
3. If equipped, disconnect the illuminated vanity mirror wire harness connector (3).
