Headlamp Washer Nozzle - Installation






INSTALLATION

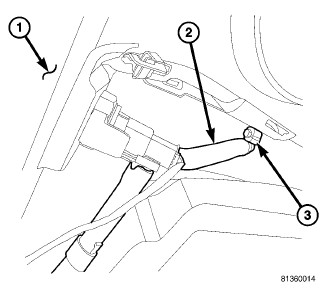

1. Install headlamp washer to front fascia (1).
2. Attache washer hose (2) to headlamp washer fitting (3).
3. Install front fascia (1) Front Bumper Fascia - Installation.
4. Connect battery negative cable.
