Installation

2.7L

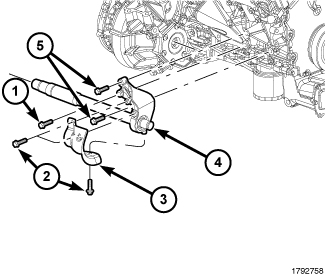

1. Install the intermediate shaft (4).
2. Install the intermediate shaft bolts (1) and (5). Tighten bolt (1) to 38 Nm (28 ft. lb.) and bolts (5) to 23 Nm (17 ft. lb.).
3. Install the heat shield (3).
4. Install the heat shield bolts (2).
5. Install the right half shaft Half Shaft - Installation.
