Transmission Shifter - Installation

INSTALLATION





1. Install and tighten the shift mechanism-to-lower console nuts (2) to 8 Nm (71 in. lbs.).

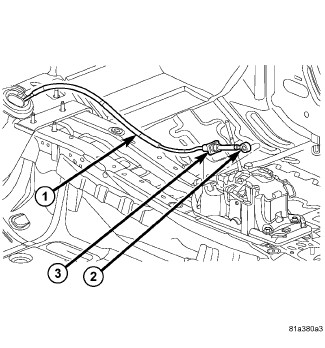

2. Install gearshift cable (2, 3) to shift mechanism.





3. Connect the harness connector (1).
4. Connect the BTSI cable (3, 4) to the shift mechanism.





5. Install the center console Shifter Housing - Installation.
6. Connect battery negative cable.
