Shift Interlock Mechanism - Removal

REMOVAL










1. Remove steering column upper and lower shrouds.
2. Grasp the interlock cable and connector firmly. Remove the interlock cable.

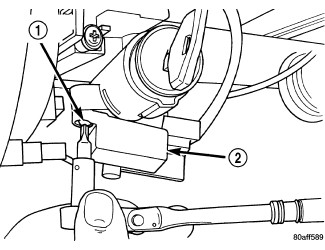

3. Remove the two interlock mechanism to steering column attaching screws (1). Remove the interlock mechanism.
