Transmission Oil Pump - Disassembly

DISASSEMBLY










1. Remove the reaction shaft support bolts.

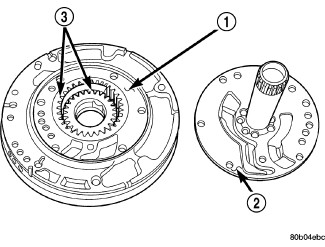

2. Remove the reaction shaft support (2) from the pump housing (1).

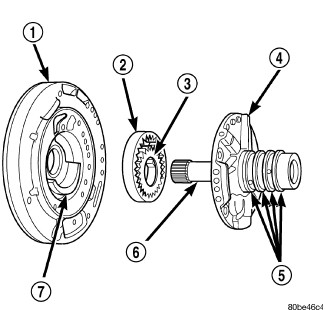

3. Remove the pump gears (2, 3) and check for wear and damage on pump housing (1) and gears (2, 3).
