Transmission Solenoid and Pressure Switch Assembly - Installation

INSTALLATION










NOTE: If solenoid/pressure switch assembly is being replaced, it is necessary to perform the "Quick-Learn" procedure Quick Learn Procedure .

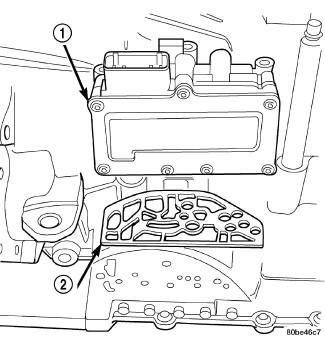

1. Install solenoid/pressure switch assembly and new gasket to transaxle.

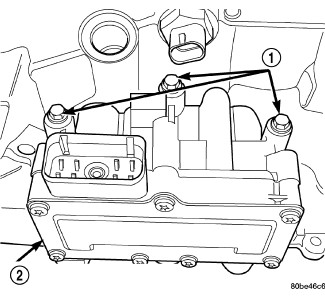

2. Install and torque three bolts (1) to 12 Nm (105 in. lbs.).

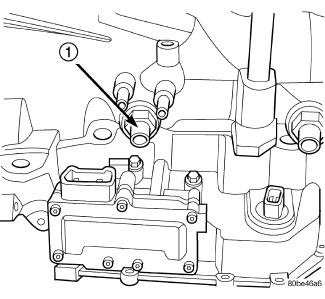

3. Install input speed sensor (1)and torque to 27 Nm (20 ft. lbs.).










4. Connect input speed sensor connector (2).
5. Install solenoid/pressure switch 8-way connector and torque to 4 Nm (35 in. lbs.).
6. Install air cleaner assembly.
7. Connect battery negative cable.
8. If solenoid/pressure switch assembly was replaced, perform the "Quick-Learn" procedure Quick Learn Procedure.
