Rear Suspension Toe Link - Removal

REMOVAL

1. Raise and support the vehicle. Maintenance

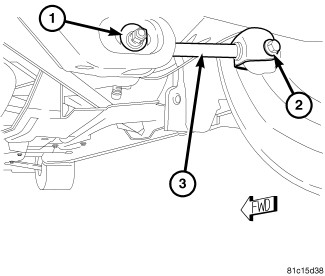

2. Remove the mounting bolt (2) and nut securing the toe link (3) to the knuckle.





3. Mark the position of the cam bolt cam on the crossmember using a paint marker or crayon. Do not use any type marker that will scratch or damage the surface of the crossmember.
4. While holding the cam bolt (4) head stationary, loosen and remove the toe link mounting cam bolt nut (3) and washer (1). Remove the cam bolt.
5. Remove the toe link (2).
